Baker Hughes 篩選子歧管 產品系列號H34018

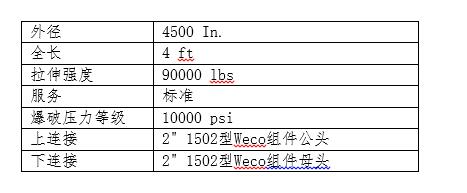

產品規格：
產品介紹：
篩選子歧管用于篩選充氣流體中可能堵塞充氣端口的固體，或放置在球座上以防止球形密封。在許多連續油管工作中，可能會在流體供應中出現以前工作過程中的沙子或其他固體。
特點與優勢：
篩選子歧管里面放置兩個線包裹的過濾器。金屬絲包裹可以保護金屬絲網過濾器，并篩出大顆粒固體。被泵送到油管的流體通過過濾器篩出固體。篩選子歧管配備了翼狀接頭，便于安裝泵管路。過濾器是63微米，可以阻止小型固體。 堵頭標有箭頭來指示流體流動的方向。
產品組裝：

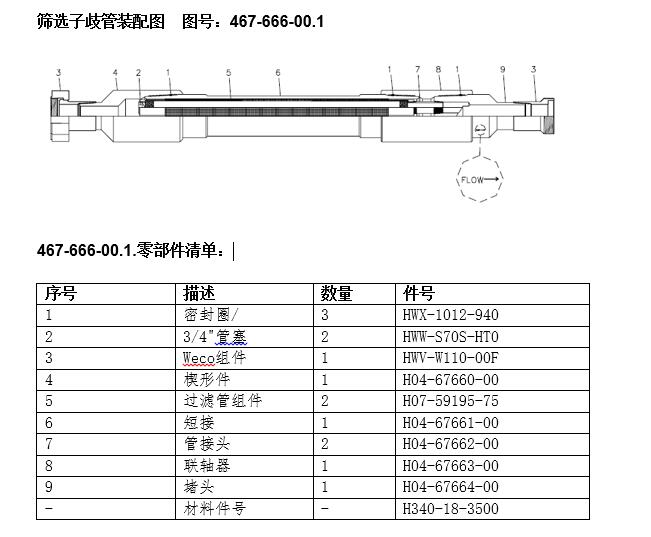

1.用油脂輕輕涂抹所有線路。
2.將堵頭(9)放在虎鉗中。
3.將Weco組件(3)的Weco母頭組裝到堵頭上。
4.將管接頭(7)組裝到堵頭(9)上。
5.將過濾管組件(5)組裝到管接頭(7)上。
6.將3/4"管塞(2)安裝到過濾管組件(5)中。
7.將密封圈(1)安裝到聯軸器(8)中。
8.將聯軸器(8)放置到過濾管組件(5)，并將聯軸器(8)與堵頭(9)連接。
9.將短接(6)放置到過濾管組件(5)，并連接至聯軸器(8)。
10.將密封圈(1)安裝到楔形件(4)中。
11. 將楔形件(4)組裝到短接(6)中。
12.將Weco組件(3)的Weco公頭組裝到楔形件(4)中。
